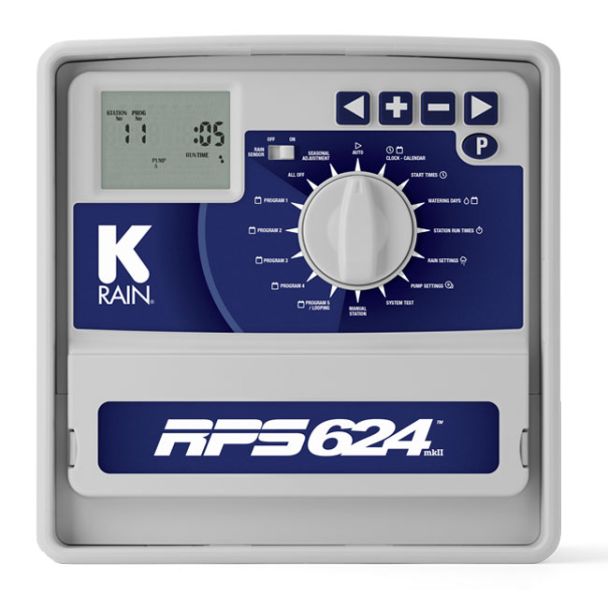

K-Rain RPS624 9 Station Irrigation Watering Controller

The new generation of irrigation controllers features the latest microprocessor technology. Advanced features include current sensing and station skip with fault indication, a real-time clock that maintains time through power outs. Exclusive low energy, high output toroidal transformer ensures reliable long-life performance. Blue backlit display can be seen in daylight and at night.

K-Rain KR3409 Features:

• 5 fully independent programs
• 4 starts per program
• Permanent memory – “Never lose your programs”
• Station watering run time up to 12 hours 59 minutes
• 7-day watering cycle with individual day selection ODD/EVEN date selection or interval watering
• Watering start times are “stacked sequentially” if they overlap
• “Rain Off” facility suspends watering during winter while retaining the time and programmed information
• Automatic, semi-automatic & single station manual operations
• System test facility
• Water saver facility allows adjustment of watering durations in percentage from “OFF” to 200% in 10% increments, per month
• Master valve/pump start is standard
• A second programmable pump is available for dual water supply, fertigation or filtration control
• “No AC” indicator on LCD when power out
• Low energy micro-processor ensures long battery life
• Permanent real time clock maintained by 3V battery
• Toroidal high capacity transformer
• Lockable outdoor waterproof case
• 5 Year Warranty

K-Rain KR3409 Specifications:

• Internal Transformer
• 220 – 240 VAC delivering 24 VAC through a 30 VA (1.25A) rated Toroidal transformer
• The transformer is low energy, highly efficient & reliable. It will ensure reliable performance over many years
• Maximum of 1 AMP
• To the Solenoid Valves: 24 VAC 50/60 Hz 0.75 Amps maximum
• To the Master Valve/Pump Start: 24 VAC 0.25 Amps maximum
• Electronic fuse with auto re-set
• 9 Volt alkaline battery (not included) maintains the clock up to one year
• 3V coin cell lithium battery (not included) will maintain time for years
