IXL Innovative In Wall Tankless Dehumidifier up to 31.5L/Day 140m2

The IW25-5 In Wall Dehumidifier with combined Bi-Polar Ionisation Technology controls excessive moisture that contributes to poor indoor air quality, property damage, mould, comfort complaints, and possible liability risks. The IW25-5 in wall dehumidification system helps lower indoor relative humidity helping prevent moisture issues. The easy to install built-in dehumidifier system is suited for both new construction and retrofit installations in multi-unit, hotels, student housing, and residential applications.

The IW25-5 removes up to 31.5 litres per day in spaces up to 140 square metres*. This fifth generation dehumidifier includes an ozone-free Bi-polar Ion Generator that distributes ions which bond to indoor pollutants including bacteria, pollen, mould and odours, breaking them down and transforming them into water vapour.

How does it work?

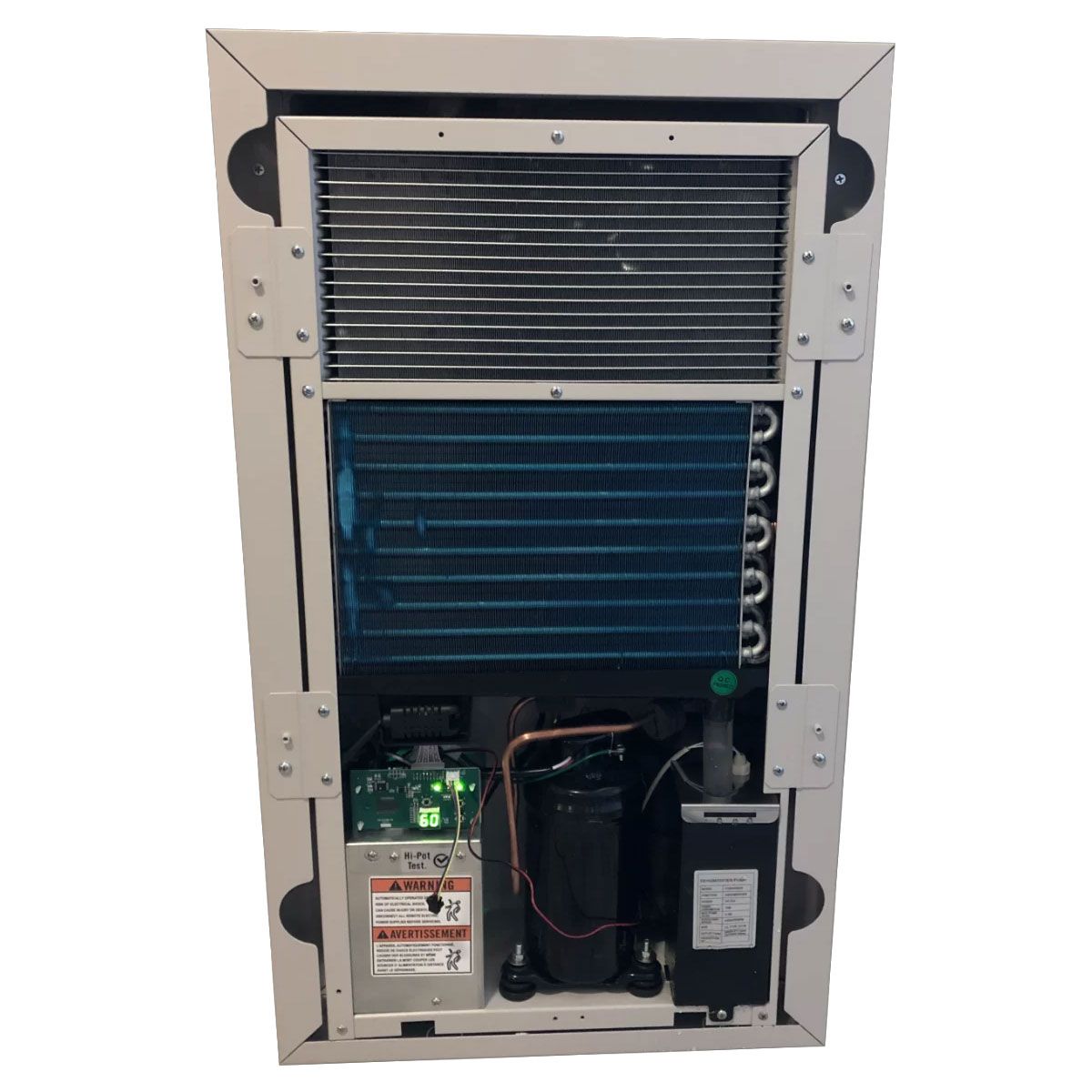

The dehumidifier uses its integral humidistat to monitor the conditions of the indoor environment. When the relative humidity goes above the selected setpoint, the dehumidifier will switch on. Air is drawn across an evaporator coil and moisture is extracted out of the air. The air is then reheated through the condenser coil and distributed back into the room.

Installation:

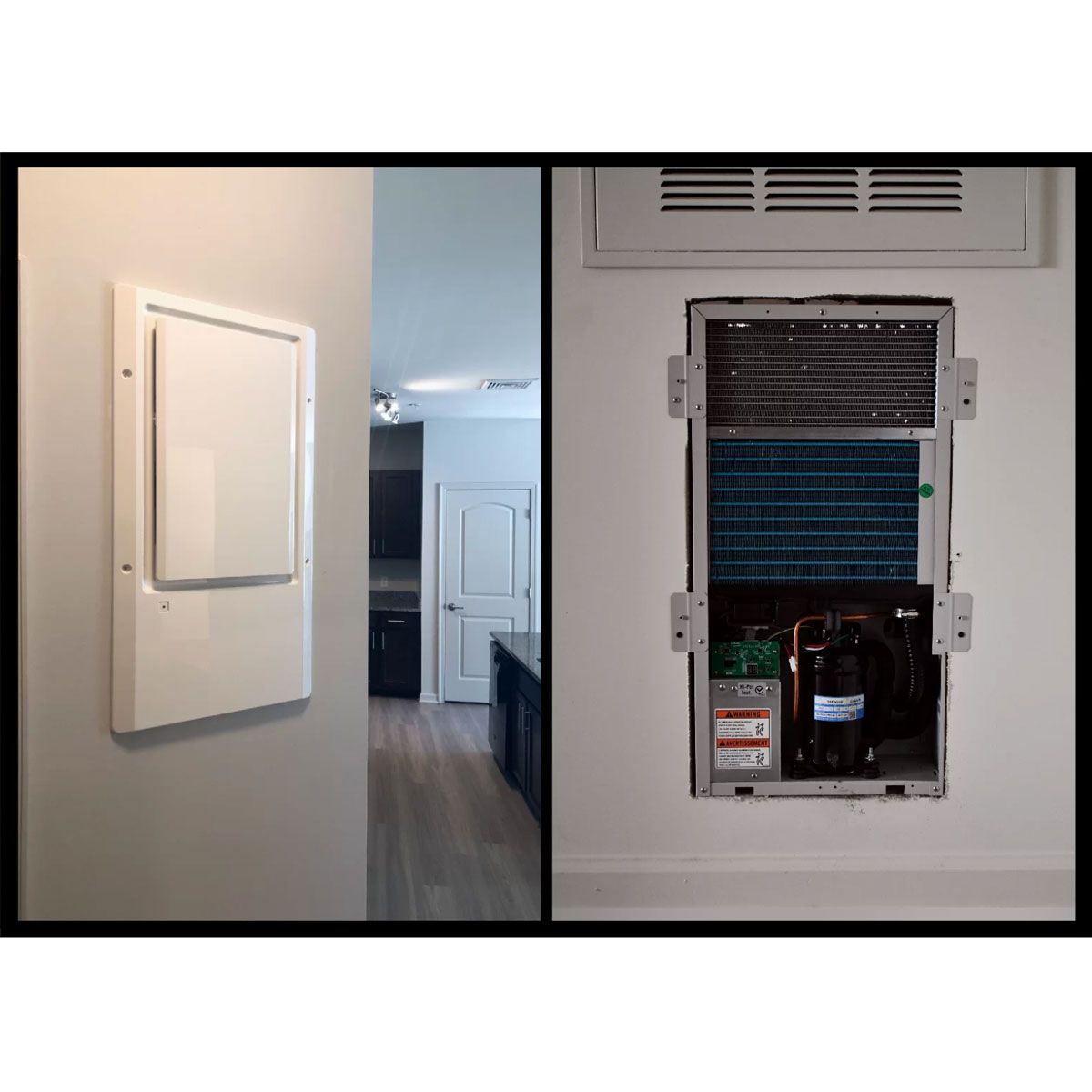

IW25-5 In-Wall Dehumidifier with combined Bi-Polar Ionization Technology is recessed and fits in a fabricated wall or through a 90 x 35mm stud wall. For semi-recessed applications, an IDS Exterior Sleeve (sold separately) can be used. It will require a licenced electrician and plumber for installation.

IXL IW25-5-IWD Features:

• Wall-Mounted: Off the ground and out of the way
• Tankless: Drains into your home's existing plumbing
• Set and Forget: Set your preferred indoor relative humidity level
• Removes up to 31.5 litres of moisture per day, in spaces up to 140 square metres, in a 24 hour period
• 5 Year Warranty

IXL IW25-5-IWD Specifications:

• Water Removal @ 30 degrees Celsius / 90%RH: Up to 31.5 litres* per day
• Energy Factor @ 30 degrees Celsius / 90%RH: 2.73L/kWh
• Area Coverage: Up to 140 m2
• Air Flow (with clean air filter): 203 m3/h
• Sound Pressure Level: 47 dBA
• Operating Temperature Range: 8 – 35 degrees celsius
• Functioning Relative Humidity Range: 36-90%
• Warranty: 5 Years on Parts & Labour
• Drain Connection Length: 3m
• Drain Connection Diameter: 19mm Hose
• Refrigerant R290: 140g
• Supply Voltage: 220-240 VAC 50 Hz
• Rated Average Power Consumption: 300 Watts @ 27 degrees celsius / 60% RH
• Max Power Consumption: 480 Watts @ 32 degrees celsius / 95% RH
• Current Rating: 2.3 Amps @ 27 degrees celsius / 60% RH
• lon Type: Bi-Polar/Positive and Negative lons
• Input Voltage: 24VDC
• Dimensions of Base Unit: 362mm (W) x 702mm (H) x 146mm (D)
• Dimensions of Base Unit with Cover: 438mm (W) x 772mm (H) x 184mm (D)
• Dimensions of In Wall Opening: 368mm (W) x 711mm (H) x 146mm (D)
• Dimensions of Exterior Sleeve: 445mm (W) x 775mm (H) x 56mm (D)
• Weight: 18kg
