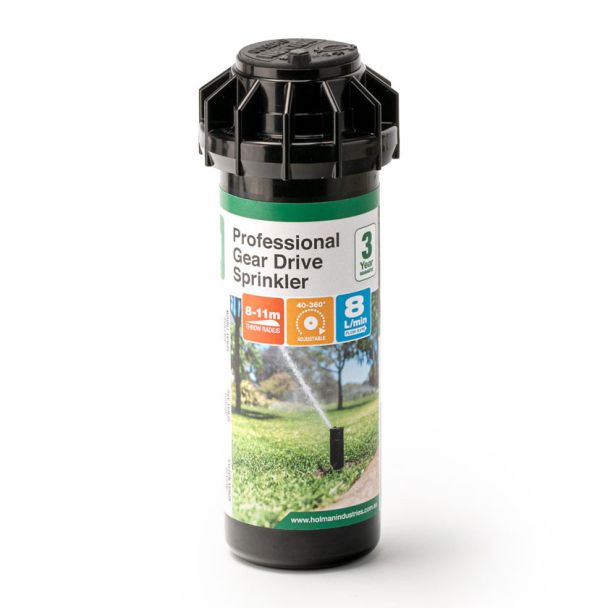

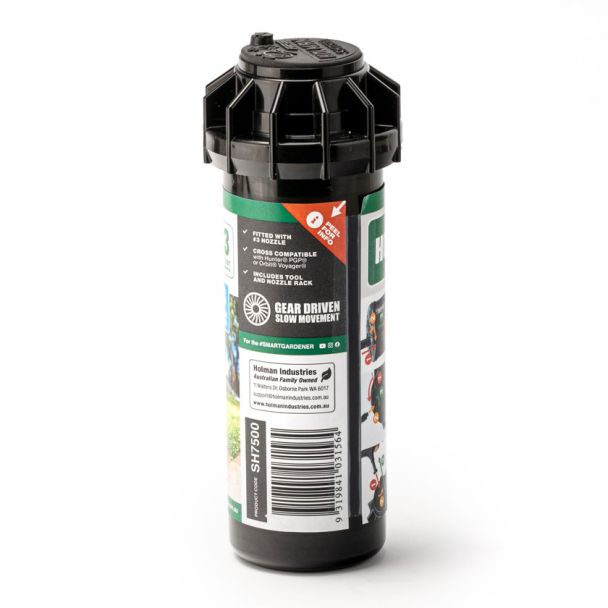

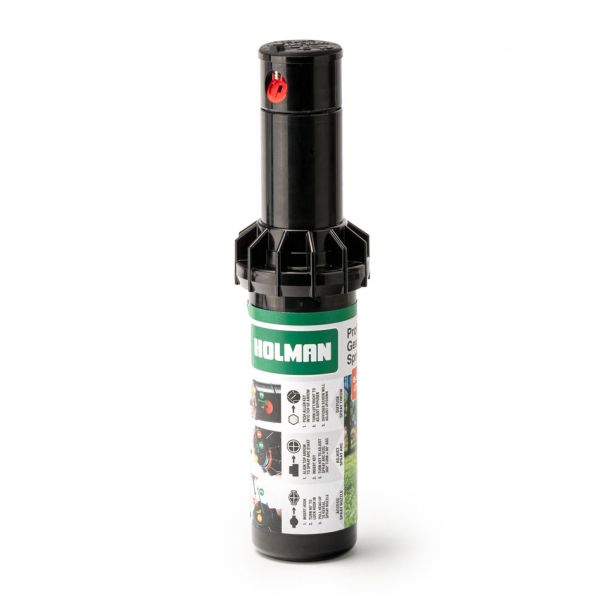

Holman Professional Gear Drive Pop Up Sprinkler

The SH7500 professional gear drive is high quality, durable and reliable sprinkler designed for basic residential and light commercial applications. A direct replacement for the Hunter PGP rotor, with our time-proven, patented reversing mechanism (the same used in the Hunter PGP), the SH7500 drops directly in an installed Hunter PGP can.

Holman SH7500 Features:

• Pack of 1
• Throw radius of 6.7 – 15.5m (depending on nozzle used)
• Flow rate between 2.6 – 32.6 LPM (depending on nozzle used)
• 3/4″ / 20mm Female Threaded BSP Inlet – Replaces all standard rotors
• Riser fits in existing Hunter® PGP® cans – Simply unscrew the existing riser from the PGP® can and replace with the SH7500 riser
• Top Adjustment – No training necessary, the SH7500 has the same adjustment procedure as the Hunter® PGP
• Full and Part circle rotation – Provides a full range of adjustment from 40* to 360*

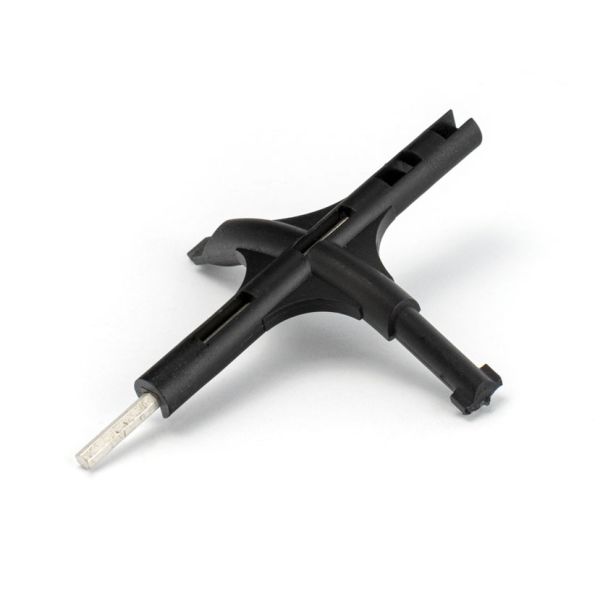

• Universal adjustment tool – Compatible with existing Hunter products
• Rubber Cover – Seals out dirt and increases product durability

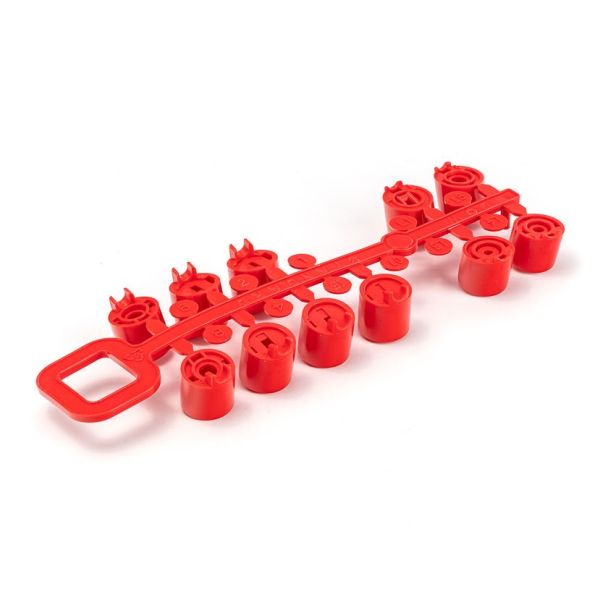

• Wide Selection of Nozzles – Provides flexibility in system design

Holman SH7500 Specifications:

• Inlet: 3/4″ (20 mm) Threaded BSP
• Arc Adjustment Range: 40 – 360 degrees
• Flow Range: 2.6 – 32.6 LPM
• Pressure Rating: 30 – 70 PSI (2.1 – 4.8 bars)
• Precipitation Rate: 4–18 mm/hr
• Overall Height (Popped Down): 19.7cm
• Recommended Spacing: 7.6 – 13.7m
• Radius: 6.7 – 15.5m
• Nozzle Trajectory: 26 degrees
• Low Angle Nozzle Trajectory: 11 degrees
• Riser Height: 10.2cm
• 2 Year Warranty
