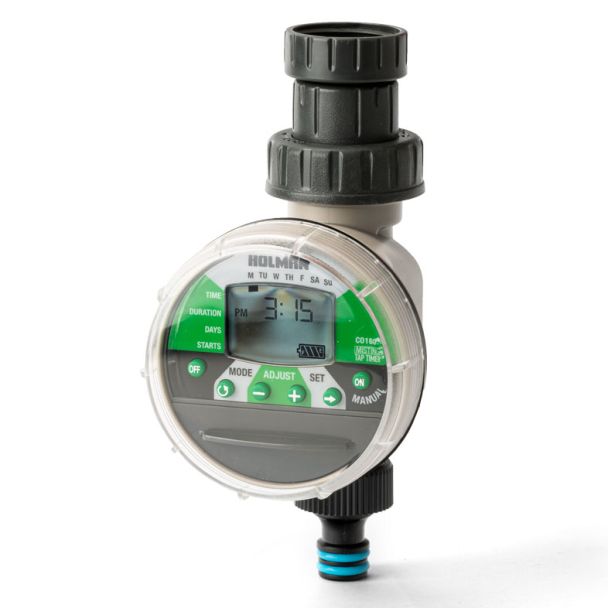

Holman Misting Garden Tap Timer with 7 Day Scheduling & Start Stop

Beat the heat this summer and complete your outdoor misting setup with the perfect timer! This Misting Tap Timer is perfect for the short-burst intervals needed to create a cool environment for pets and outdoor activities. What’s more, this timer is perfect for the watering schedules needed for Greenhouses and vertical Green Walls.

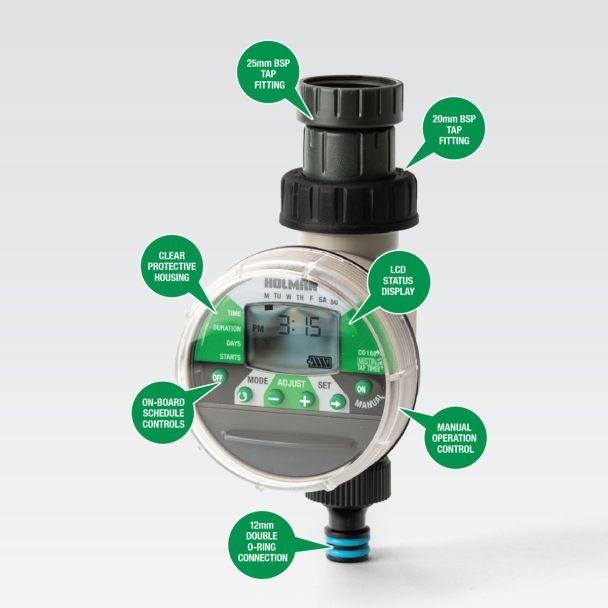

Holman CO1609 Features:

• 7 day scheduling with start and stop times
• Use hours, minutes or seconds to set misting duration
• Great for greenhouses with timing down to the second
• Easy to read digital dial
• 600kPa Pressure Rating
• 25m BSP Tap Fitting
• Do not use in freezing conditions
• 3 degrees celsius min working temperature
• 12 Month Warranty

Short Burst Watering Intervals

This tap timer provides easy to install and easy to use solutions for misting kits, vertical gardens, greenhouses and systems requiring multiple starts with a delay function. The image below shows a great example of scheduling short run times with quick intervals.

Operating Pressure:
Min 100kPa, Max 600kPa. We recommend using this timer with a pressure reducer.

Holman CO1609 Specifications:

• Model Number: CO1609
• Battery: 9V battery (not included)
• Material: Plastic
• Colour: Grey
• Weight: 0.23kg
• Dimensions: 111 × 85 × 165 mm
• Fitting Size: 12mm
• Fitting Type: Snap-on
• Above Ground: Yes
• Minimum Pressure (kPa): 100
• Maximum Pressure (kPa): 600

Holman CO1609 Flow Rate:

• Water Pressure: 100 kPa, 17.8 litres per minute
• Water Pressure: 200 kPa, 21.8 litres per minute
• Water Pressure: 300 kPa, 27.8 litres per minute
• Water Pressure: 400 kPa, 32 litres per minute
• Water Pressure: 500 kPa, 35.8 litres per minute

Holman CO1609 Box Contents:

• 1 × CO1609 Tap Timer
• 1 × Universal Tap Adaptor
• 1 × 12mm Snap-on Connector
• 1 × User Manual
