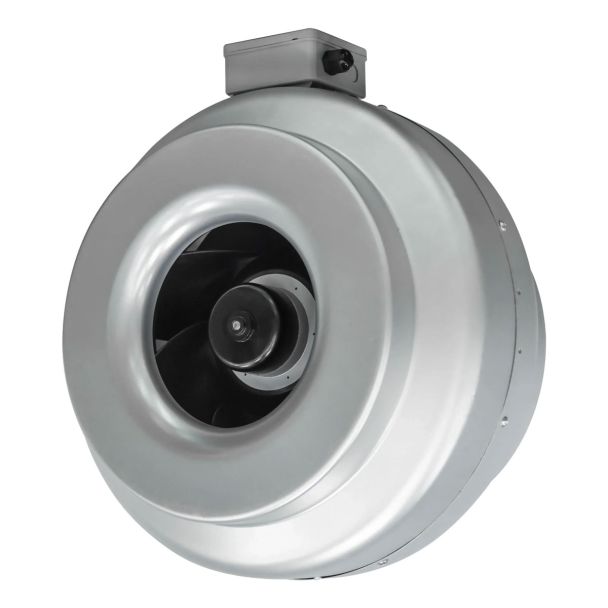

Fanmaster 310mm Inline Duct Fan with Galvanised Steel Casing

The range of Fanmaster Inline Duct Fans offer exceptional performance in a compact, durable design. Constructed from high-quality galvanised steel, the casing is built to withstand the rigours of various environments, making them ideal for residential, commercial, and even industrial settings.

Energy Efficiency: EC motors use significantly less energy compared to traditional AC motors, translating to cost savings on your electricity bills.
Consistent Airflow: Even under demanding conditions, EC motors ensure a powerful and consistent stream of air, effectively removing moisture, odours, and contaminants from your space.
Quiet Operation: Despite their power, our inline duct fans are engineered for quiet operation. The optimised inlet design further minimises noise generation, making them suitable for noise-sensitive environments like homes, restaurants, and offices.

Fanmaster IDF-310E Features:

• Durable galvanised steel casing
• High-efficiency EC motors (energy saving)
• Quiet operation
• Versatile applications (residential, commercial, industrial)
• Compact design
• 1 Year Warranty

Fanmaster IDF-310E Specifications:

3 VAC Settings

• Duct Size: 310mm
• Voltage Frequency: 230V 50Hz
• VAC V: 10 / 8 / 6
• Power: 128W / 82W / 35W
• Current: 0.98A / 0.67A / 0.31A
• Speed: 2750 RPM / 2400 RPM / 1800 RPM

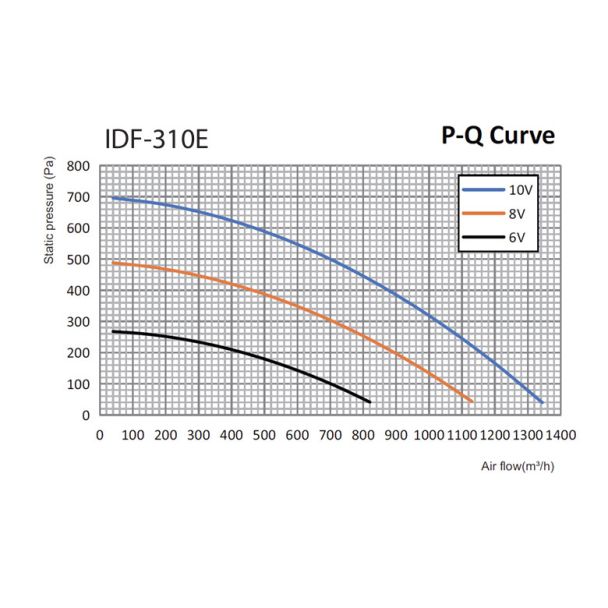

• Airflow m3/hr: 1377 / 1173 / 887
• Static Pressure: 710PA / 497PA / 273PA
• Noise: 71dBa / 68dBa / 60 dBa
• Maximum Efficiency Point Power: 126.4W / 125.7W / 53.3W
• Maximum Efficiency: 46.73% / 45.56% / 44.63%
• Impeller Material:PA66+25%GF
• Scroll housing Material: SPCD
• Bearing: Ball bearing
• Type of protection: IP44
• Operation Mode: S1
• Motor insulation class: F
• Direction of rotation: Anti-clockwise, see on the leads
• Ambient Temp: -20~+60 degrees C
