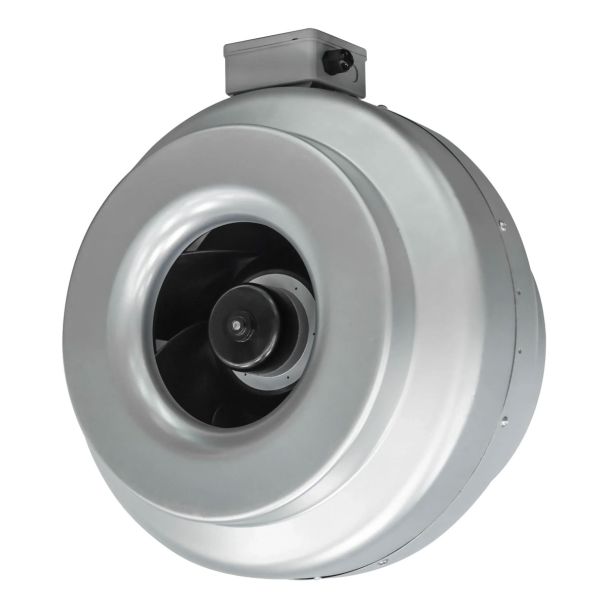

Fanmaster 200mm Inline Duct Fan with Galvanised Steel Casing

The range of Fanmaster Inline Duct Fans offer exceptional performance in a compact, durable design. Constructed from high-quality galvanised steel, the casing is built to withstand the rigours of various environments, making them ideal for residential, commercial, and even industrial settings.

Energy Efficiency: EC motors use significantly less energy compared to traditional AC motors, translating to cost savings on your electricity bills.
Consistent Airflow: Even under demanding conditions, EC motors ensure a powerful and consistent stream of air, effectively removing moisture, odours, and contaminants from your space.
Quiet Operation: Despite their power, our inline duct fans are engineered for quiet operation. The optimised inlet design further minimises noise generation, making them suitable for noise-sensitive environments like homes, restaurants, and offices.

Fanmaster IDF-200E Features:

• Durable galvanised steel casing
• High-efficiency EC motors (energy saving)
• Quiet operation
• Versatile applications (residential, commercial, industrial)
• Compact design
• 1 Year Warranty

Fanmaster IDF-200E Specifications:

3 VAC Settings

• Duct Size: 200mm
• Voltage Frequency: 230V 50Hz
• VAC V: 10 / 8 / 6
• Power: 112W / 66W / 30W
• Current: 0.89A / 0.55A / 0.26A
• Speed: 2850 RPM / 2400 RPM / 1800 RPM

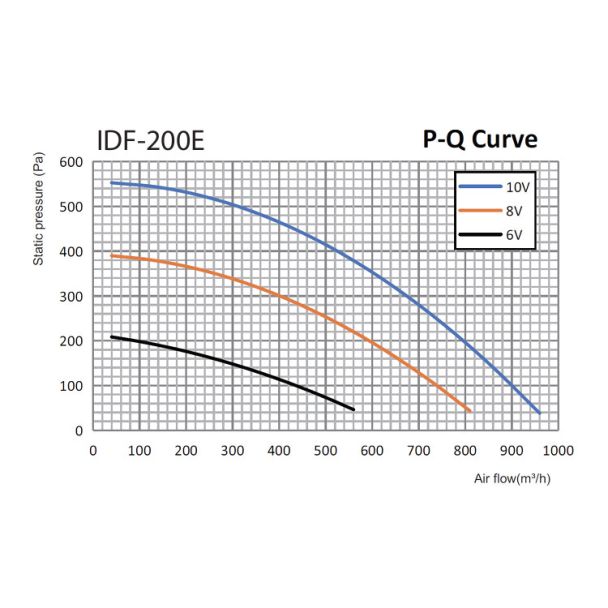

• Airflow m3/hr: 989 / 847 / 612
• Static Pressure: 566PA / 394PA / 219PA
• Noise: 68dBa / 63dBa / 56 dBa
• Maximum Efficiency Point Power: 128.3W / 79.5W / 34.1W
• Maximum Efficiency: 41.67% / 41.81% / 38.87%
• Impeller Material:PA66+25%GF
• Scroll housing Material: SPCD
• Bearing: Ball bearing
• Type of protection: IP44
• Operation Mode: S1
• Motor insulation class: F
• Direction of rotation: Anti-clockwise, see on the leads
• Ambient Temp: -20~+60 degrees C
