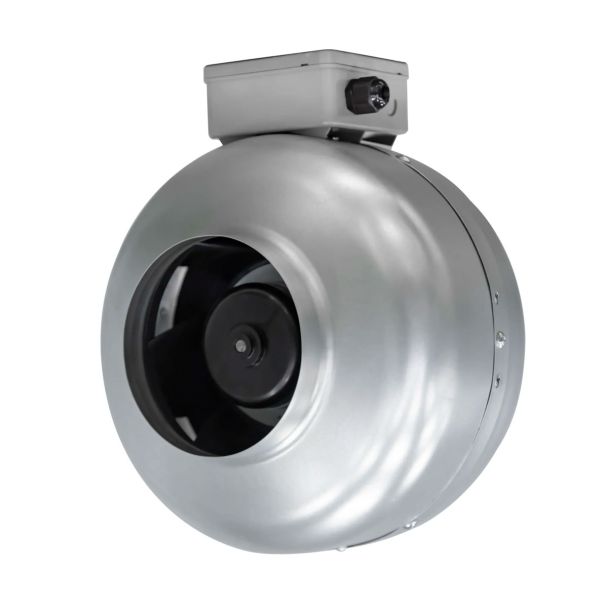

Fanmaster 150mm Inline Duct Fan with Galvanised Steel Casing

The range of Fanmaster Inline Duct Fans offer exceptional performance in a compact, durable design. Constructed from high-quality galvanised steel, the casing is built to withstand the rigours of various environments, making them ideal for residential, commercial, and even industrial settings.

Energy Efficiency: EC motors use significantly less energy compared to traditional AC motors, translating to cost savings on your electricity bills.
Consistent Airflow: Even under demanding conditions, EC motors ensure a powerful and consistent stream of air, effectively removing moisture, odours, and contaminants from your space.
Quiet Operation: Despite their power, our inline duct fans are engineered for quiet operation. The optimised inlet design further minimises noise generation, making them suitable for noise-sensitive environments like homes, restaurants, and offices.

Fanmaster IDF-150E Features:

• Durable galvanised steel casing
• High-efficiency EC motors (energy saving)
• Quiet operation
• Versatile applications (residential, commercial, industrial)
• Compact design
• 1 Year Warranty

Fanmaster IDF-150E Specifications:

3 VAC Settings

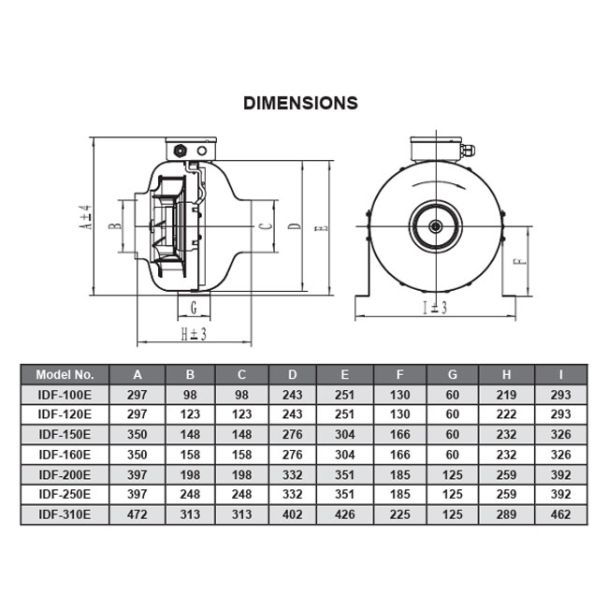

• Duct Size: 150mm
• Voltage Frequency: 230V 50Hz
• VAC V: 10 / 8 / 6
• Power: 42W / 28W / 14W
• Current: 0.37A / 0.25A / 0.15A
• Speed: 2800 RPM / 2400 RPM / 1800 RPM
• Airflow m3/hr: 469 / 408 / 306

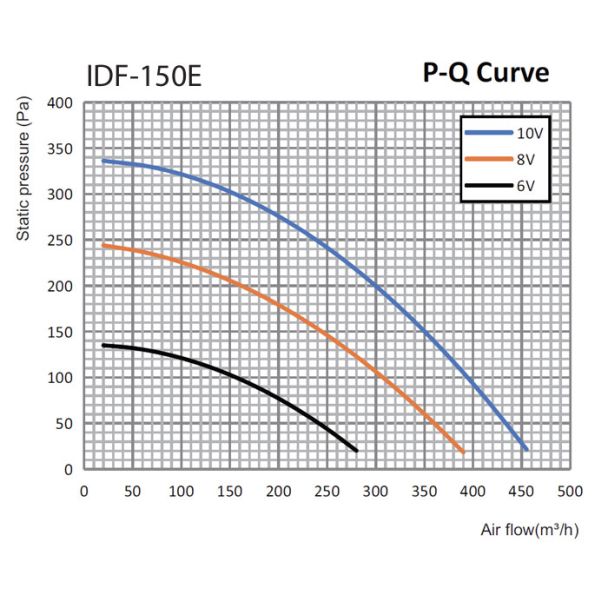

• Static Pressure: 348PA / 251PA / 142PA
• Noise: 62dBa / 58dBa / 50 dBa
• Maximum Efficiency Point Power: 42.2W / 28.4W / 14.1W
• Maximum Efficiency: 30.58% / 30.21% / 26.05%
• Impeller Material:PA66+25%GF
• Scroll housing Material: SPCD
• Bearing: Ball bearing
• Type of protection: IP44
• Operation Mode: S1
• Motor insulation class: F
• Direction of rotation: Anti-clockwise, see on the leads
• Ambient Temp: -20~+60 degrees C
