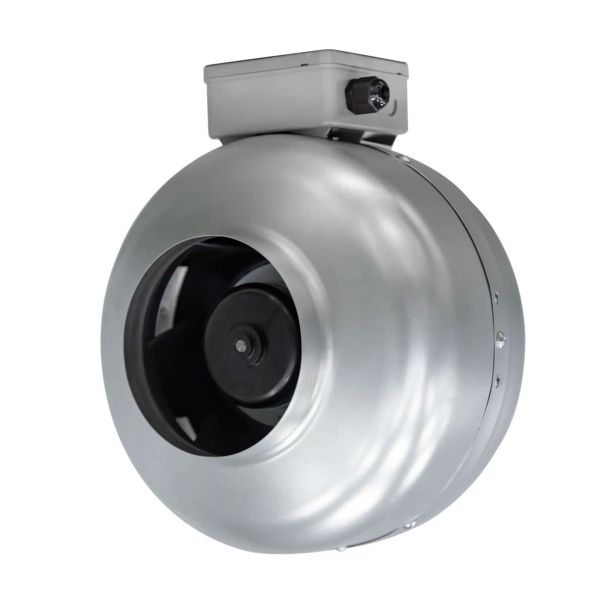

Fanmaster 100mm Inline Duct Fan with Galvanised Steel Casing

The range of Fanmaster Inline Duct Fans offer exceptional performance in a compact, durable design. Constructed from high-quality galvanised steel, the casing is built to withstand the rigours of various environments, making them ideal for residential, commercial, and even industrial settings.

Energy Efficiency: EC motors use significantly less energy compared to traditional AC motors, translating to cost savings on your electricity bills.
Consistent Airflow: Even under demanding conditions, EC motors ensure a powerful and consistent stream of air, effectively removing moisture, odours, and contaminants from your space.
Quiet Operation: Despite their power, our inline duct fans are engineered for quiet operation. The optimised inlet design further minimises noise generation, making them suitable for noise-sensitive environments like homes, restaurants, and offices.

Fanmaster IDF-100E Features:

• Durable galvanised steel casing
• High-efficiency EC motors (energy saving)
• Quiet operation
• Versatile applications (residential, commercial, industrial)
• Compact design
• 1 Year Warranty

Fanmaster IDF-100E Specifications:

3 VAC Settings

• Duct Size: 100mm
• Voltage Frequency: 230V 50Hz
• VAC V: 10 / 8 / 6
• Power: 39W / 25W / 12W
• Current: 0.35A / 0.24A / 0.14A
• Speed: 2800 RPM / 2400 RPM / 1800 RPM

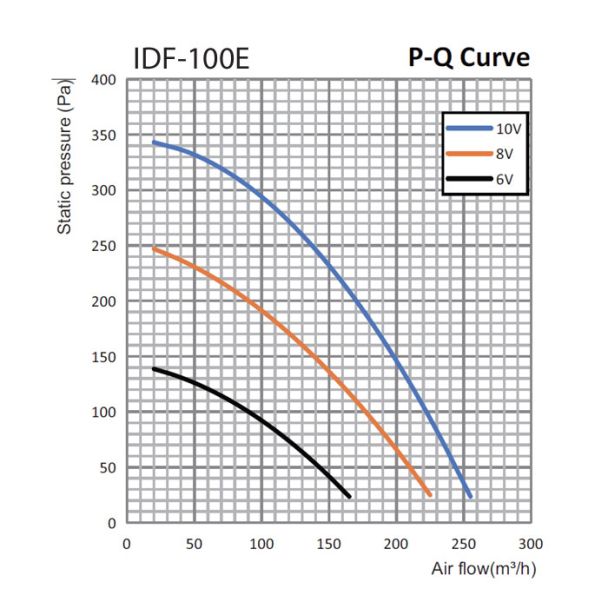

• Airflow m3/hr: 265 / 235 / 179
• Static Pressure: 355PA / 259PA / 148PA
• Noise: 62dBa / 59dBa / 52 dBa
• Maximum Efficiency Point Power: 29.1W / 21.4W / 10.8W
• Maximum Efficiency: 27.17% / 24.85% / 21.08%
• Impeller Material:PA66+25%GF
• Scroll housing Material: SPCD
• Bearing: Ball bearing
• Type of protection: IP44
• Operation Mode: S1
• Motor insulation class: F
• Direction of rotation: Anti-clockwise, see on the leads
• Ambient Temp: -20~+60 degrees C
